Product Objective
    The common interface of Jindi SMS middleware VC version is database, and its working pattern is as follows:


Brief instructions:
    1)This middleware opens four shared database tables to the customer: T_SendTask, T_SentRecord, T_RecRecord and T_EventLog;
    2)If the customer wants to send SMS, he need just to write target phone numbers, content, sending priority and scheduled time into the SendTask Table;
    3)This middleware can automatically check the SendTask Table according to the scheduled time and then send them out. Besides, for each sending target and divided messages, it generates the logs of sending results and writes into the SentRecord Table, so that the system of user can query the final sending state.
    4)This middleware can receive replied messages automatically and write into the RecRecord Table, then the user can deal with them at scheduled time.
    5)This middleware write the generated logs into the EventLog Table and the system of user can get the running state according to the logs at any time.

Technical Features
    · The development is based on C and C++ language, and it runs efficiently in the operating systems of WINDOWS NT series;
    · Connected by ODBC and support variety main popular databases such as SQL SERVER, ORACLE, DB2, MySQL, PostgreSQL, Access and so on. Also support other databases according to the requirements of users;
    · Provide more than one interface, including database interface and COM components interface (support multiple events), so that the enterprise can extend SMS function in other business systems;
    · Support bulk SMS of multiple target numbers and automatically divide super long text to send, and transfer or reply received messages automatically;
    · Provide the running way in back-end system service of windows, and the device can start SMS automatically after reboot without manual operation;
    · Based on database interface, the user’s system, the database server and the server of Jindi SMS can be deployed individually to avoid influencing each other;
    · Based on database interface, no matter whether it is C++ or JAVA, .NET or J2EE, they all can be integrated perfectly;
    · Support at most 128pcs modems in parallel at the same time and do load balancing automatically when sending SMS in big batches;
    · Support SMS queue, priority and signature. Common SMS and WAP PUSH are allowed;
    · Send SMS by the modem. The sensitive information (such as the storage, meetings\activities notices, phone numbers of customers\email addresses and so on) needn’t be passed to any third party (like SP service providers) to send out, and no internet is connected, either. Then make sure the best security of the business data and the enterprise network.

Advantages of the product
    Why do users choose Jindi SMS middleware instead of developing by themselves?
    The advantages of Jindi SMS middleware are as follows:
    · Save time: users need to known little about details of SMS interfaces so that they can save lots of development time of the back-end SMS;
    · Reduce the cost: this middleware avoid the most complicated and the newest parts to the developer, and it greatly speeds up the development and reduces the debugging cost;
    · Reduce risk of projects: the back-end SMS is the key and complicated technology in extending SMS function and it requires a very stable product. This mature and stable middleware will greatly reduce risk of projects;
    · High extensibility: this middleware provides the long-term and free upgrade. Even if it needs to be customized as the user’s requirements, the change is only in the middleware instead of the business platform;
    · Professional: this middleware is designed for a large demand of enterprise SMS centers and it accumulates three years of technology to become a hit product;
    · Provide the simulation sending environment: provide the simulation and trial version to customers freely for development test, and it is easy-used;
    · Easily maintained: provide the back-end running mode. It runs automatically as long as the computer starts, which lowers manual maintenance greatly.

Connect the SMS modem
     GSM MODEM：it is usually called SMS cat, and the main import brands are WAVECOM, SIEMENS and Sony Ericsson. The domestic OEM modems are assembled based on GSM modules of WAVECOM and SIEMENS, and their interfaces are mainly serial ports which is the most stable. In addition, the other USB interfaces are connected actually through the usb to serial driver.

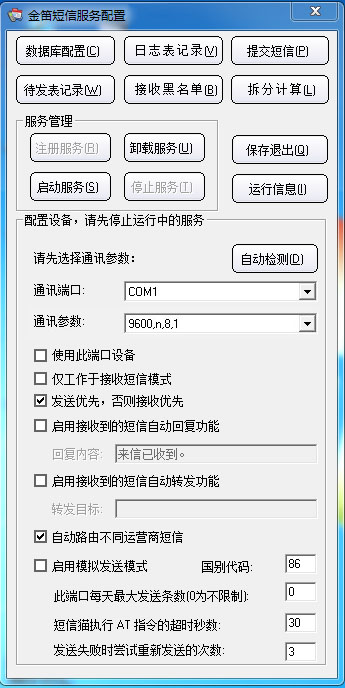

Configuration Interface

     Operating system：Windows 2000 / XP / 2003 / Vista / Windows 7 / Windows 2008 / windows 8/8.1/ windows server 2012/

     Dear users:
     Jindi SMS middleware VC version was upgraded on June 30th, 2015 (the latest version is 5.1.103). The new version adds the support for MC323 and MG301 modules. Since May 15th, 2012, the chip IMEI serial number has been confirmed by WMSN and the authorization also refers to this serial number. If regular customers want to upgrade the version of this middleware, they should show us the previous IMEI and authorization to get the new authorization. If you have any question, please feel free to contact us, and the contact number is 010-82356575 extension 6002.
     Please note that if your middleware is version5.1.101 or after that, it’s not necessary to upgrade. Thanks for your cooperation.

    Operating system：Windows 2000 / XP / 2003 / Vista / Windows 7 / Windows 2008 / windows 8/8.1/ windows server 2012/
    Database：SQL Server / Oracle / DB2 / MySQL / PostgreSQL / Access
