| Technical Specification |

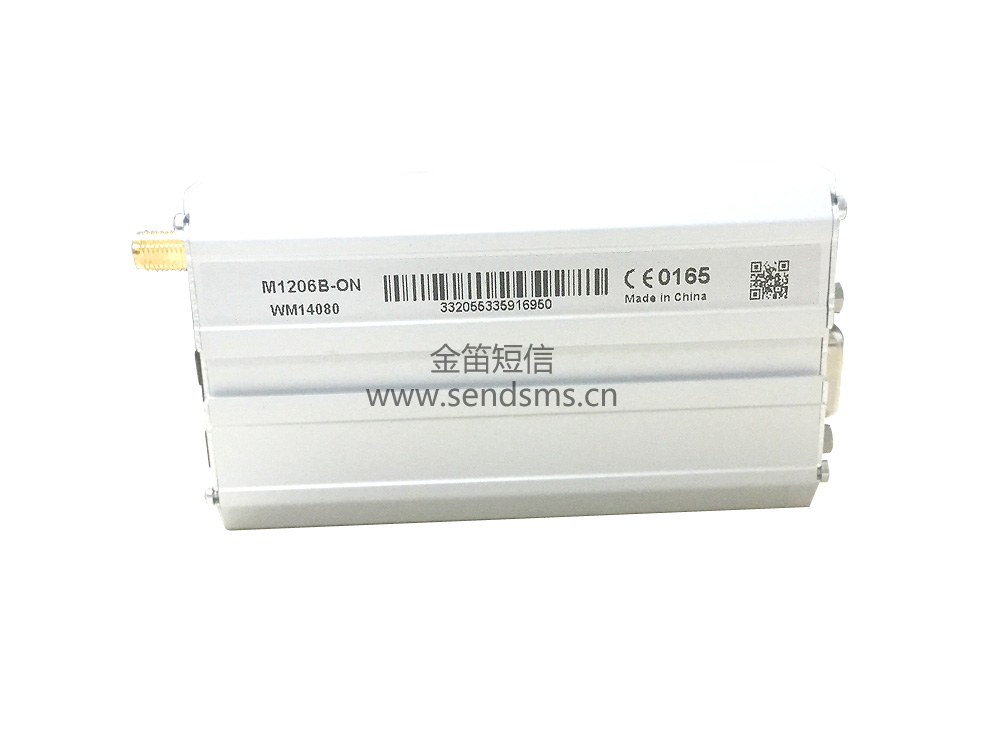

| Product Model： |
M1206B(Chip:24PL) |
| Technical Indicator： |
1、Band limits:GSM900M／1800M
Sending speed:600pcs/h |
| Origin： |
Chip:France
Power supply、data cable、antenna:China |
| Product?Performance： |
Dual-band GSM modem (EGSM900/1800MHz or EGSM900/1900MHz), applied to the data, fax, voice and messaging applications, certified by all the ETSI GSM Phase2＋technical standards, and its design and development conform to these standards (General Telephone) |
| Output Power： |
Class4(2W@900MHz)
Class1(1W@1800/1900MHz) |
| Input Voltage： |
5V－32V |
| Input Current： |
5mA standby，140mA @12V phone state?GSM900MHz
5mA standby，100mA @12V phone state GSM1800/1900MHz |
| Temperature Range： |
-20 ℃ - +55 ℃ working state
-25 ℃ - +70 ℃ storage state |
| Product Size： |
GSM Modem：10CM×5CM×2CM
Carton Size：22CM×15. 5CM×5. 5CM |
| Net Weight： |
130g |
Data, Fax, Voice And Messaging Function
Applications: control GSM Modems receiving and sending SMS through RS232 or USB interface on a computer or a single chip.
· Voice function call emergency call speech?coder?and?decoder: full rate, enhanced full rate and half rate (FR/EFR/HR) dual tone multiple frequency function (DTMF)
· Data/fax function asynchronous data circuit, transparent and opaque data to the highest standard 14400 bits/s the third type of automatic fax machine (Class1 and Class2) MNP2, V42bis
· Messaging function text and PDU ?point-to-point (MT/MO) cell broadcast
GSM Additional Functions
· call transfer
· call barring
· MPTY
· call waiting and call holding
· caller ID
· call charge prompt
· unstructured supplementary service data（USSD）
· closed user group
· show call transfer
Other Functions
· open software platform（support the embedded systems of user applications）
· ME＋SIM address book management
· fixed dialing
· SIM card value-added services Class2
· SIM card, card locked function of network and service provider
· real time clock
· alarm manager
· XMODEM protocol software upgrading
· support the text UCS2
Interface

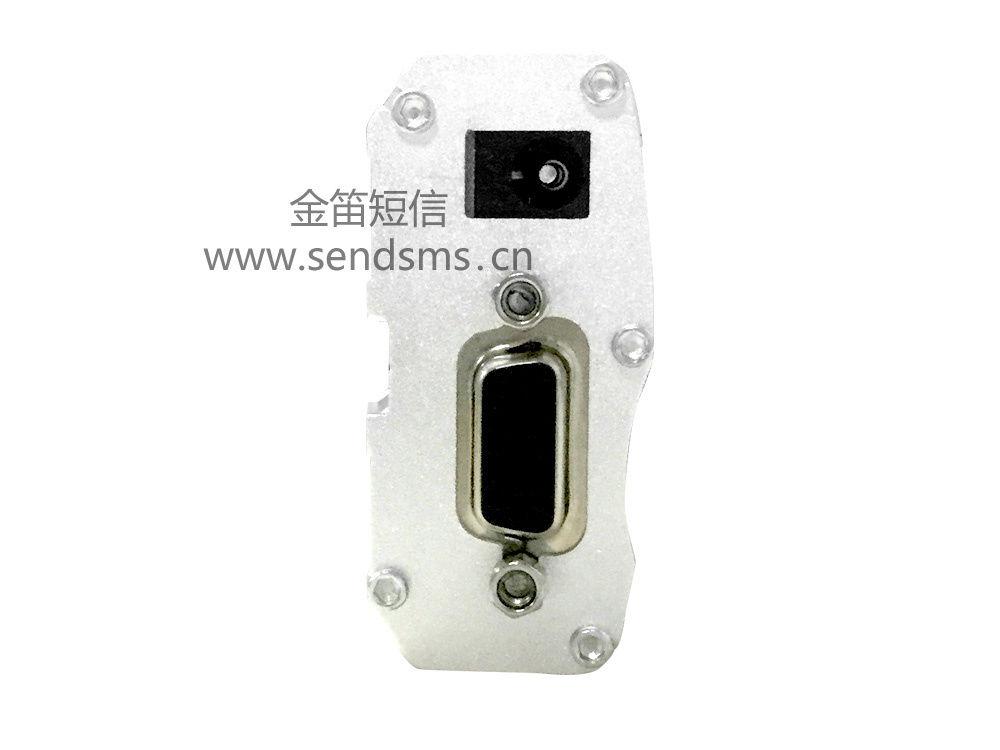

· Support RS232 serial and audio interface through a small Sub - D15 plug connector
· Telecontrol by AT commands （GSM07. 07及07. 05）
· Serial bit rate from 300 to 115200 bits/s
· Automatic bit rate from 300 to 38400 bits/s
· Through DC-005 Plug power connector

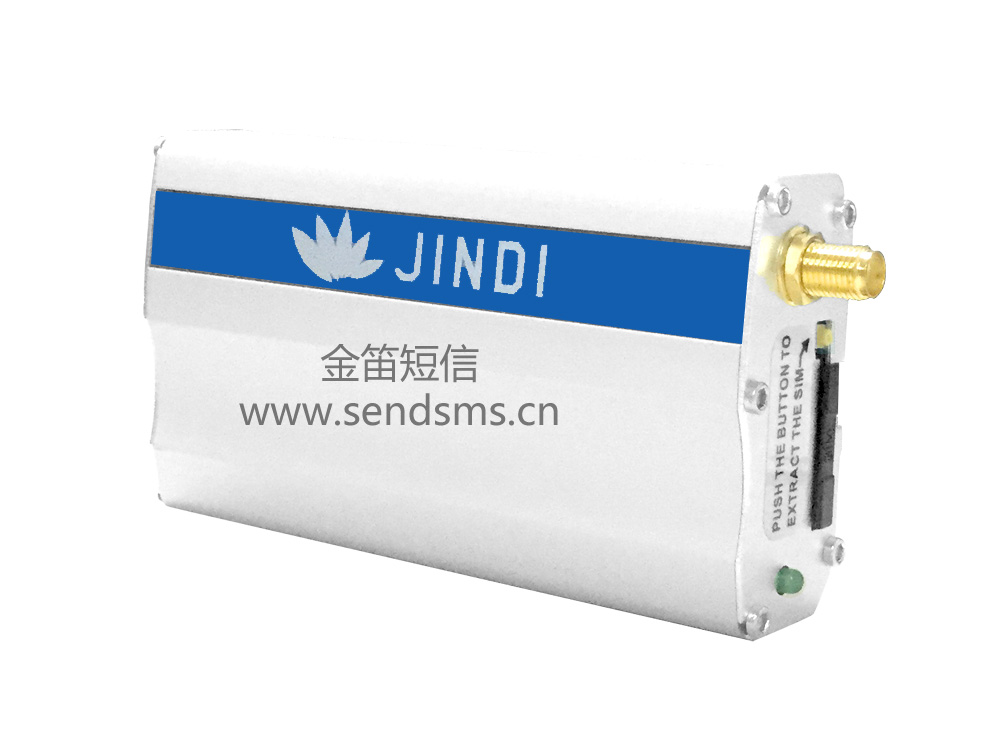

· SMA antenna interface

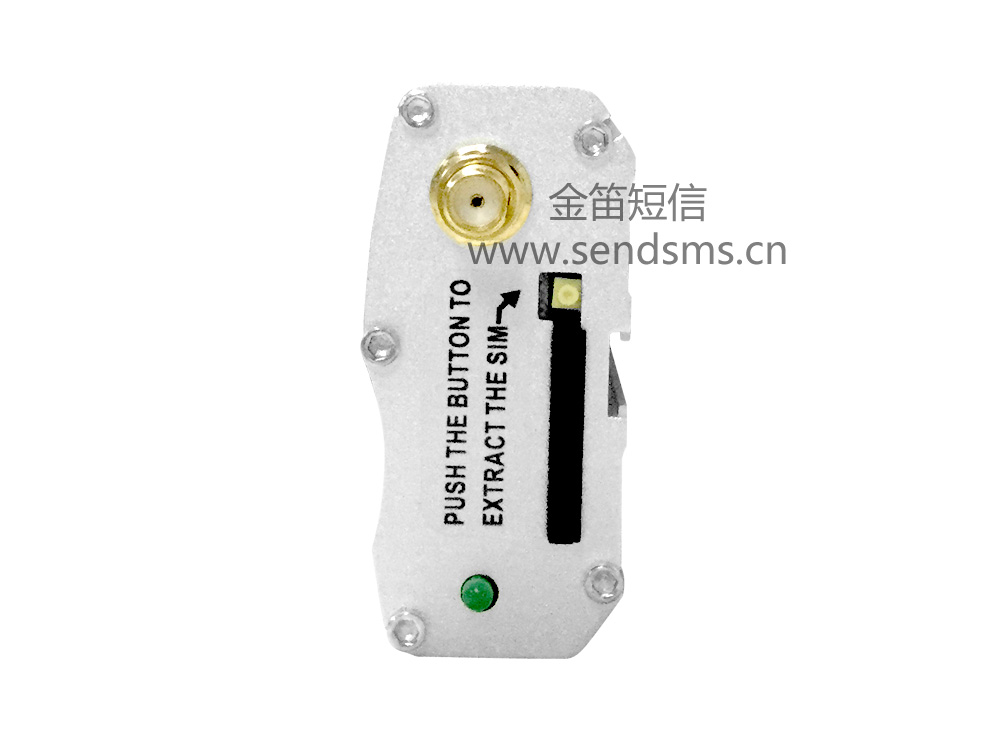

· Slide-on holder of SIM card
Parts List：
· RS232 interface:Power Supply *1; RS232 Data Cable *1; Antenna *1; Software CD *1; Operation Manual *1; Warranty Card *1

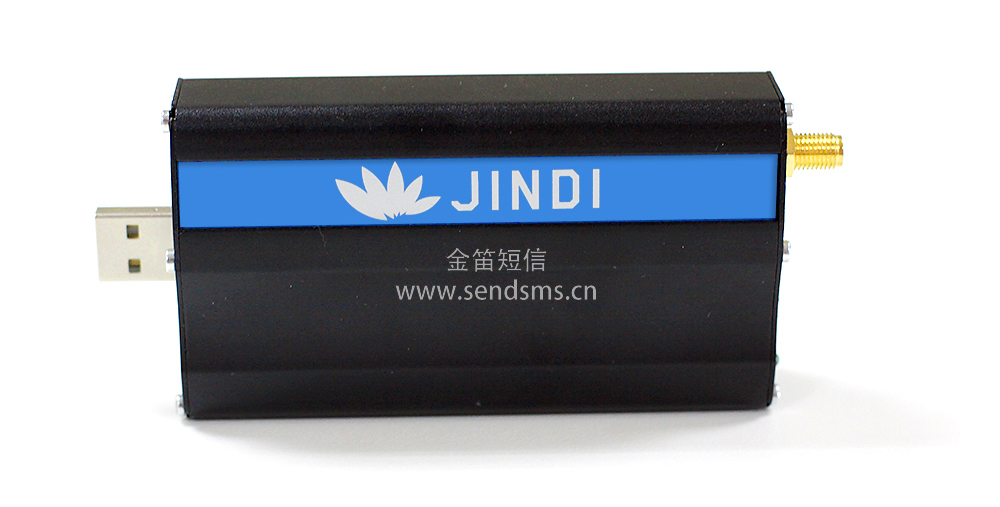

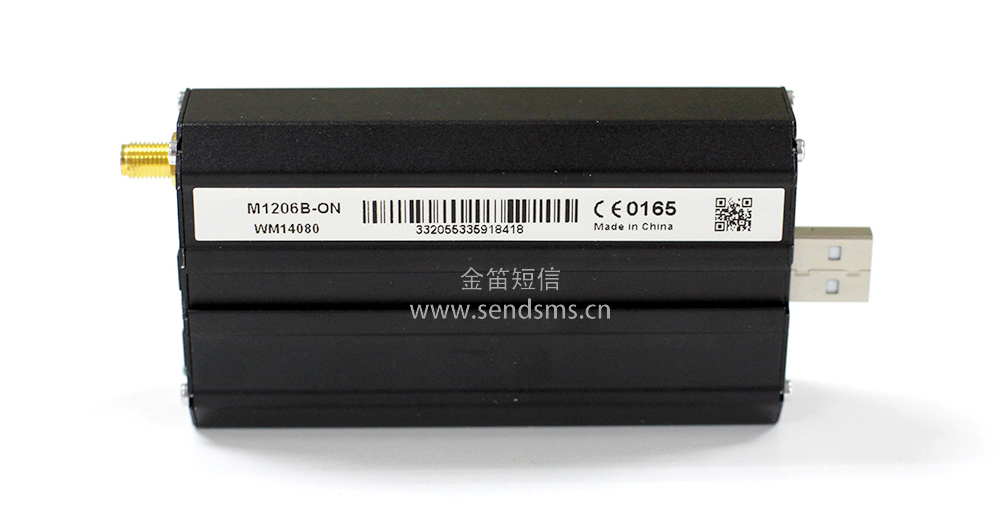

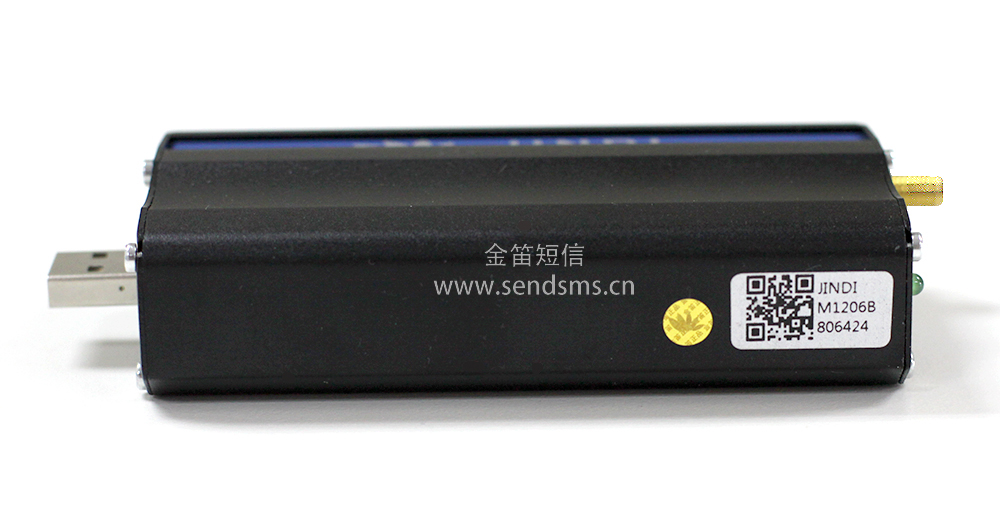

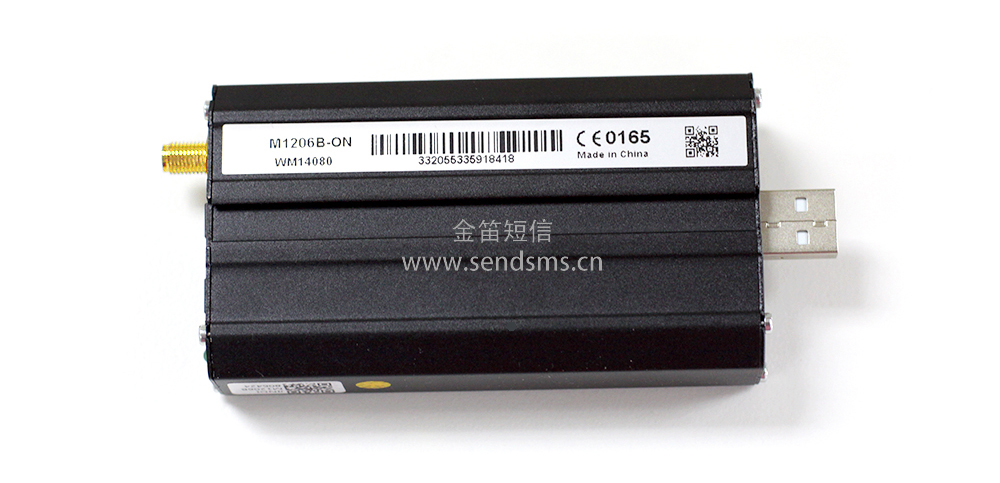

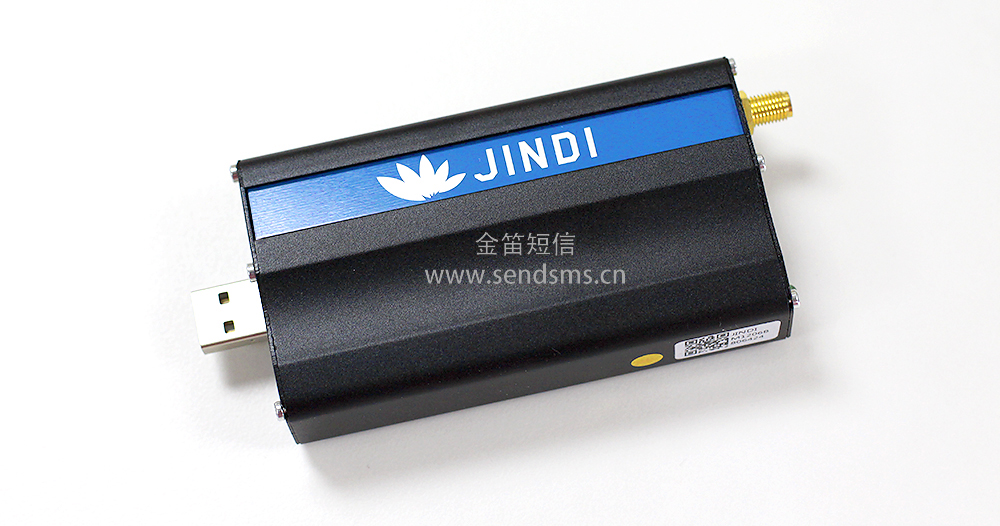

· USB interface:USB Data Cable *1; Antenna *1; Software CD *1; Operation Manual *1; Warranty Card *1
Out Packing：
· Carton。
