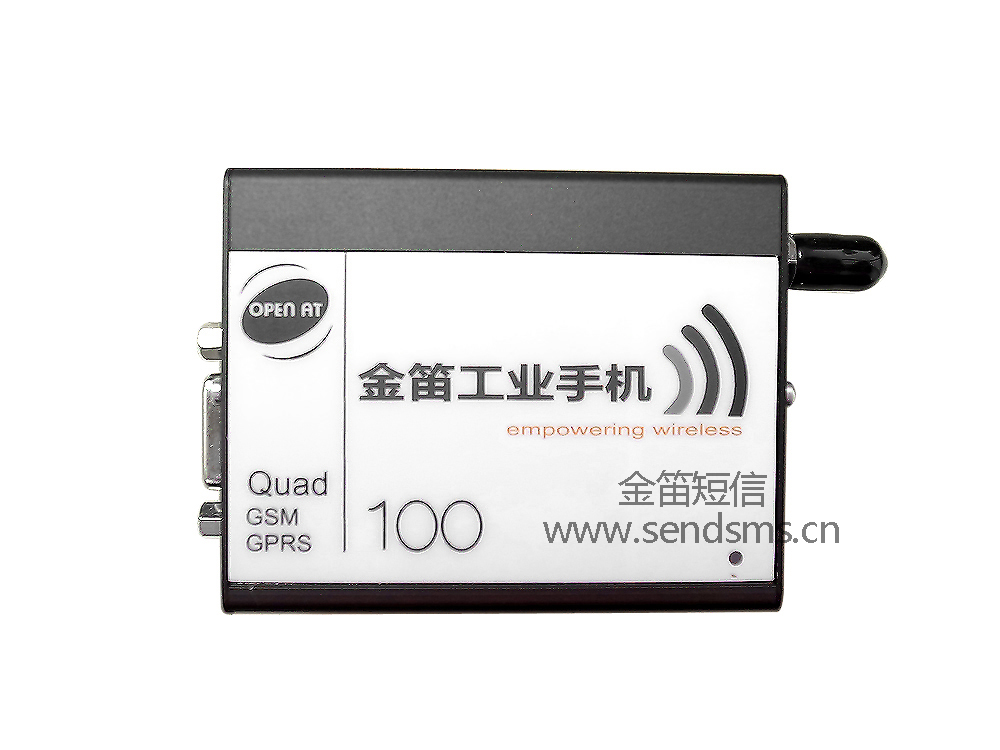

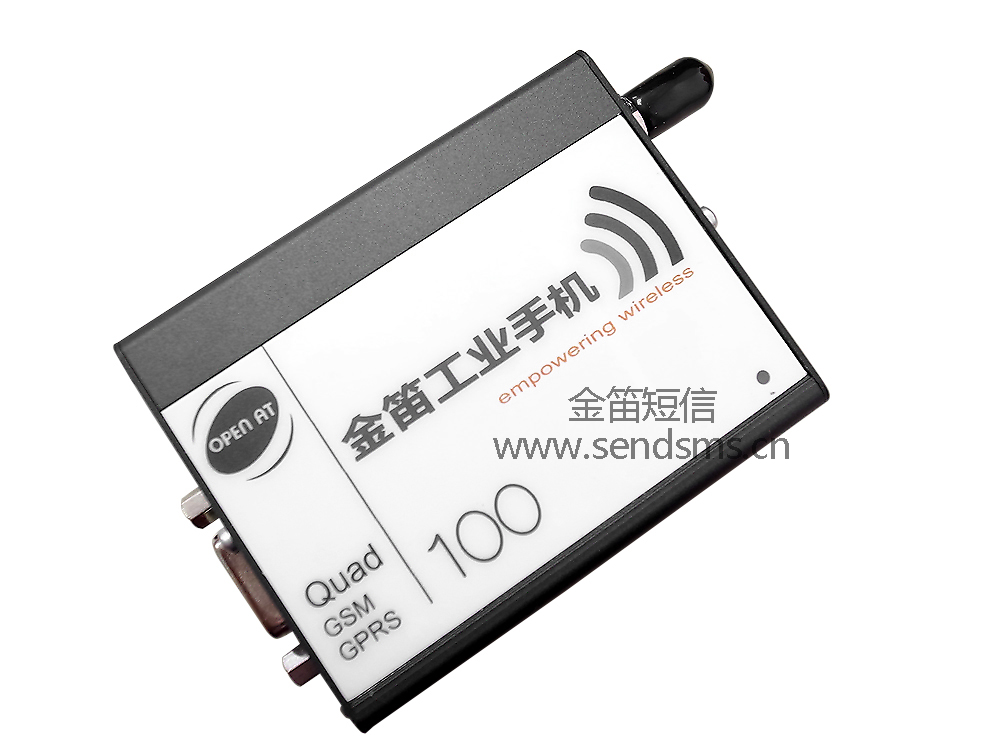

Jindi GSM modem M100: The reliable solution of wireless to the M2M market
M100 can be used to design and produce complete variety wireless modem and integration services for the M2M market.
Relying on more than 10 years of experience and proprietary technology in M2M communication industry, our team provides efficient and reliable solutions of wireless for users, and the production line includes all things from popular ordinary modems to OEM integrated products which is special and optimized.
M100 simple to use high reliability industrial MODEM
M100 is a perfect solution applied to needs of suppliers. Its functions are complete and simple to use. Besides, it’s easy to be integrated with any other industrial application, such as electronic measures, alarm systems and automatic vending machine and so on.
M100 supports quad-band and can be used all over the world.
Since M100 is assembled with a WAVECOM chip, it has a guarantee of high reliability. As long as you integrate M100 in your project, no matter how extreme the circumstances are, the modem will still run normally and have a strong life in use.

Technical Specification
Product Performance：	GSM quad-band，GPRS Class 10，voice/data/fax/SMS，TCP/IP TCP/UDP
Power Supply：	GSM 850/900(PLC 5) 310mA at 5V DCS 1800/PCS1900 (PCL 10) 240mA at 5V GPRS 850/900 CL10 (PCL 5) 520mA at 5V GPRS 1800/1900 CL10 (PCL 10) 390mA at 5V Idle consumption 35mA at 5V
Input Voltage：	5V－32V
Input Current：	5mA standby，140mA @12V phone state?GSM900MHz 5mA standby，100mA @12V phone state GSM1800/1900MHz
Temperature Range：	－20℃－+55℃ working state －25℃－+70℃ storage state
Product Size：	88*60*26mm
Net Weight：	100g

Function Characteristics
· Input/Output data
· Download wirelessly(optional)
· Set AT commands(GSM07.05, GSM07.07, and WAVECOM)＞300
· Save automatically/time reset

Voice/Data/SMS Features
· Asynchronous loop/transparent/opaque transmission of data can be 14,400 bytes
· Autofax(class 1 and class 2)
· MNP2, V.42 byte
· Text/PDU format
· point-to-point SMS
· USC2 function set and management

Other Features
· LED running state

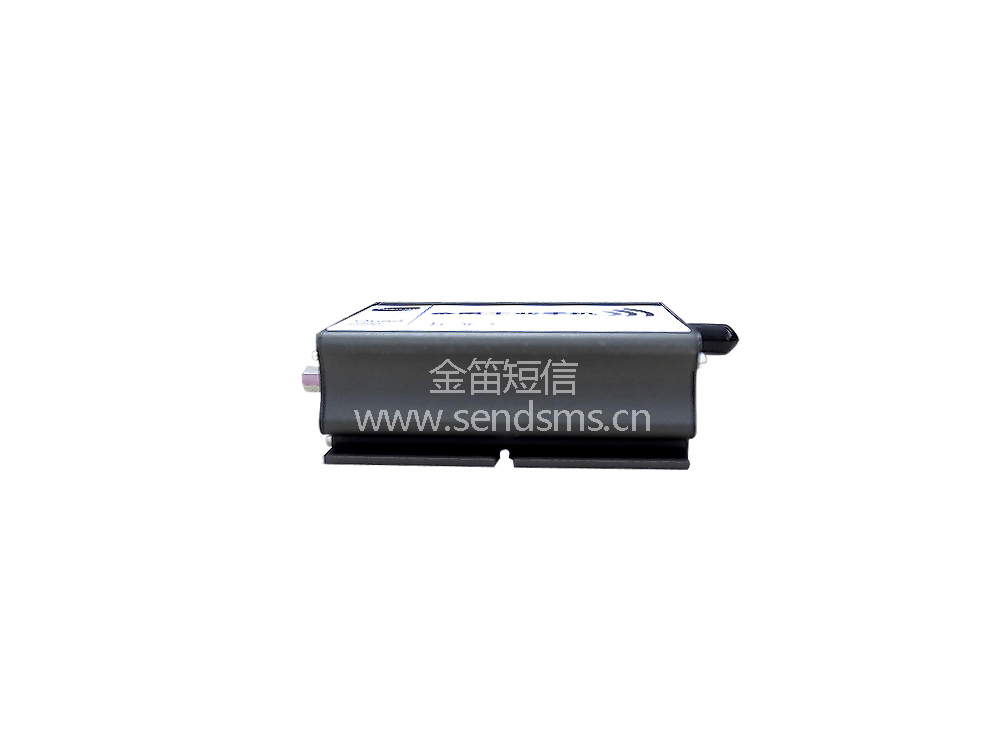

· DIN rail mounting

Interface

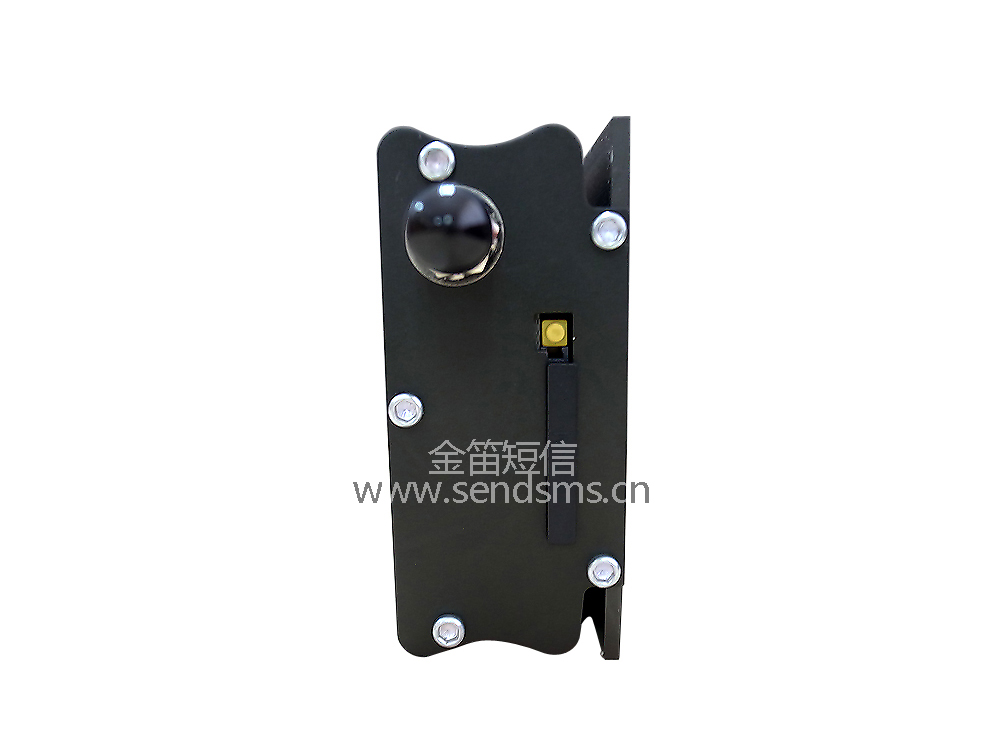

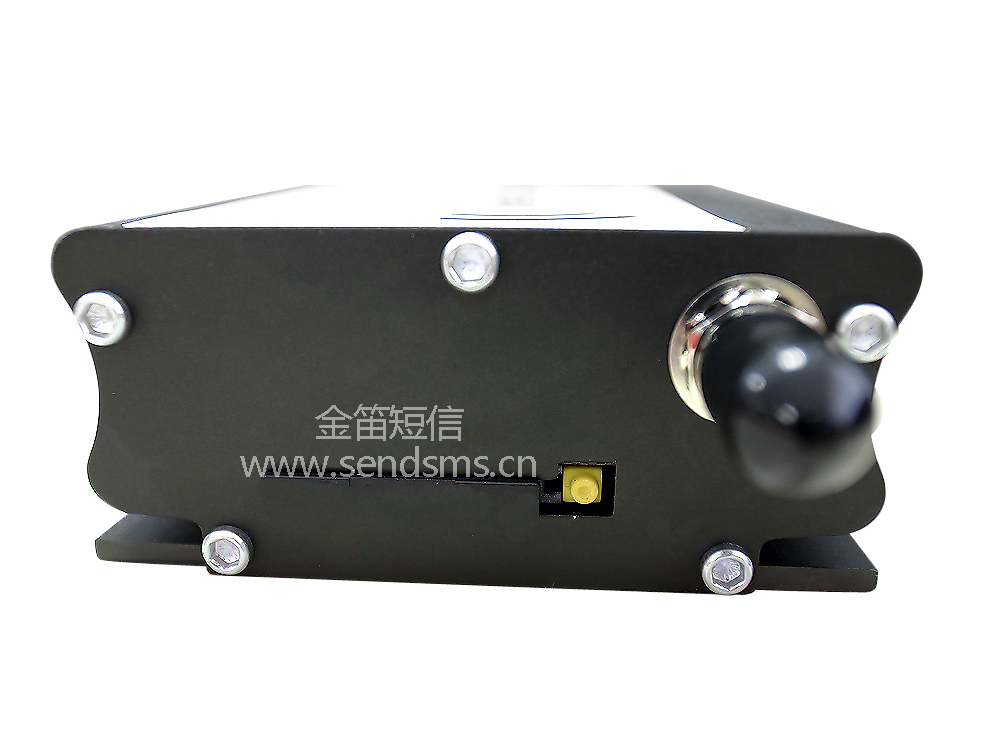

· Slide-on holder of SIM card 1.8/3V

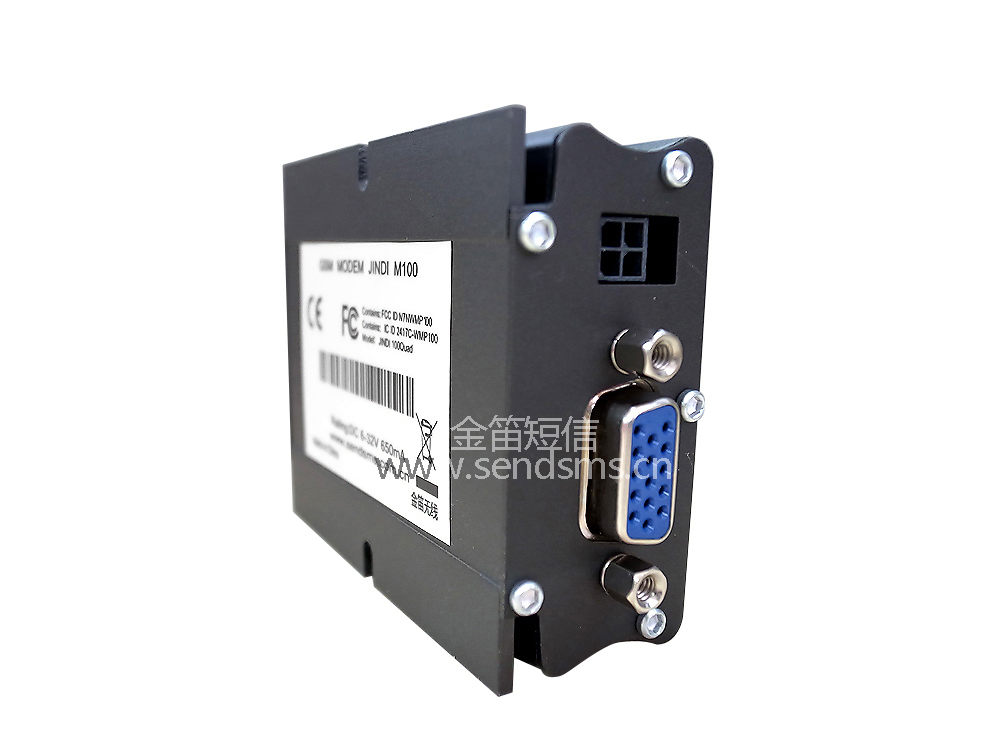

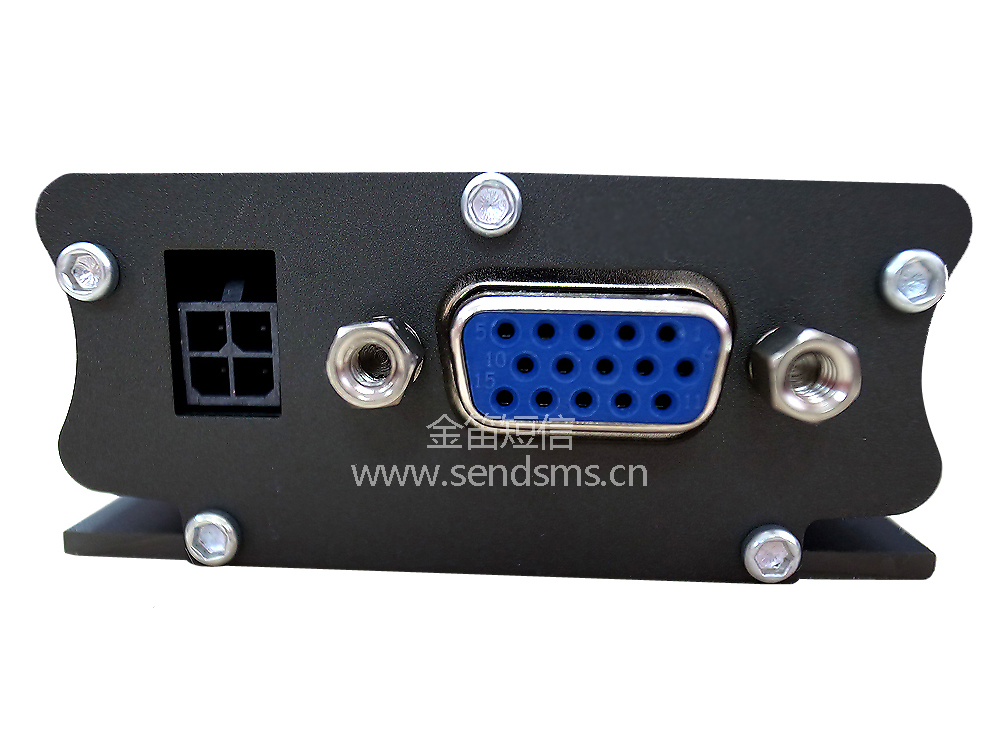

· Serial connector with 15-pin
· Through micro - FIT4 Plug power connector

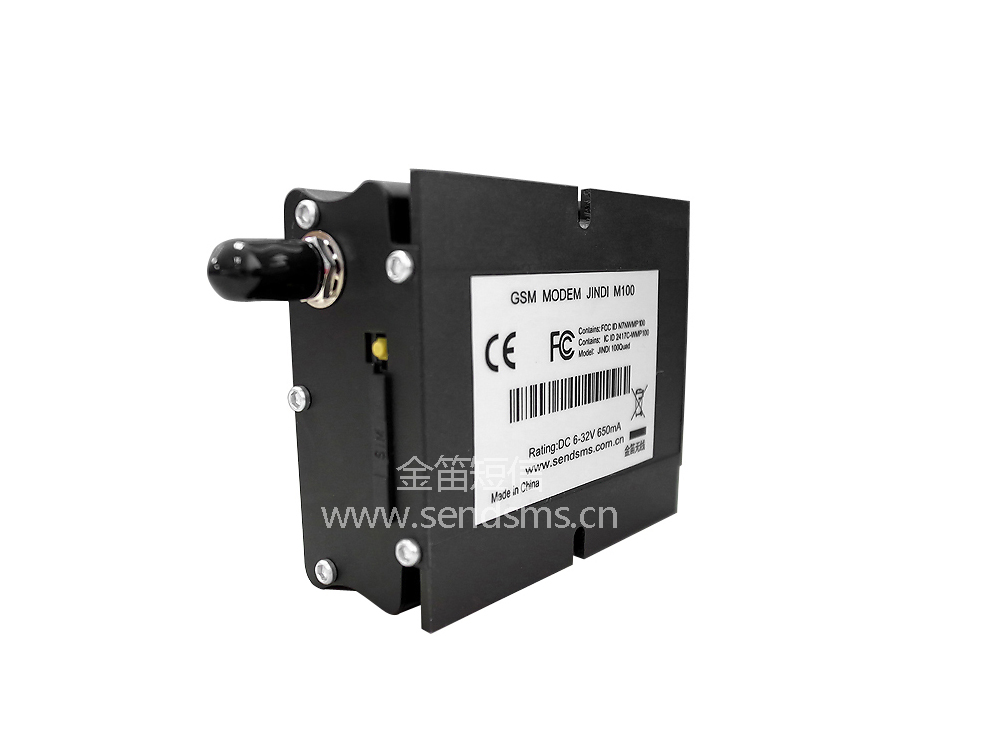

· SMA antenna interface

Parts List：
· Power Supply *1
· RS232 Data Cable *1
· Antenna *1
