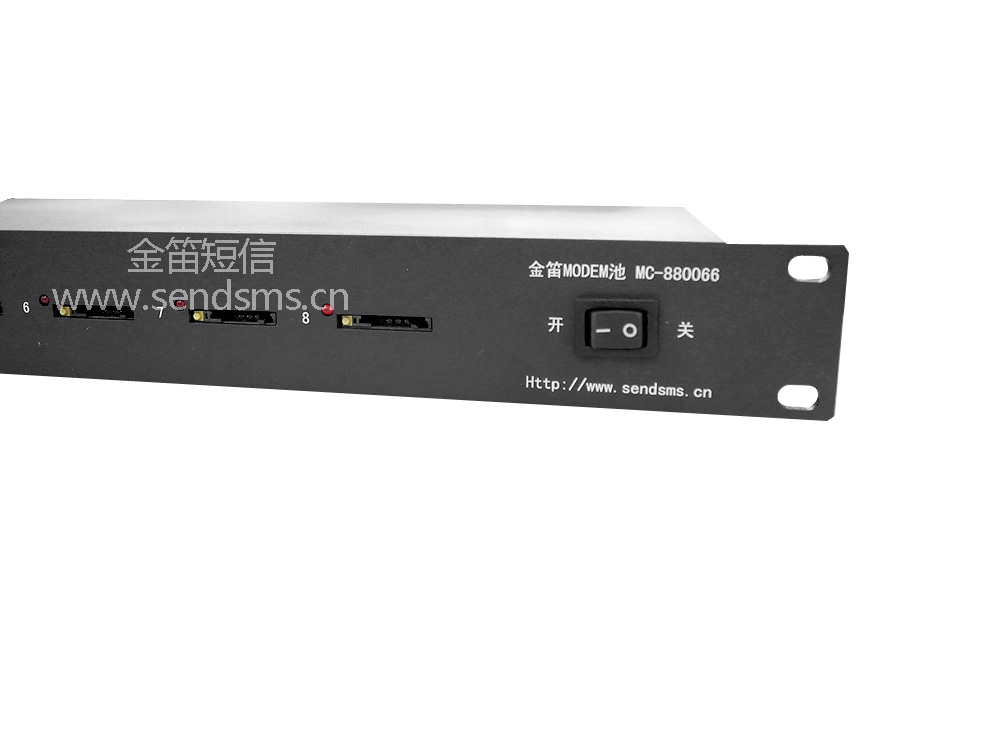

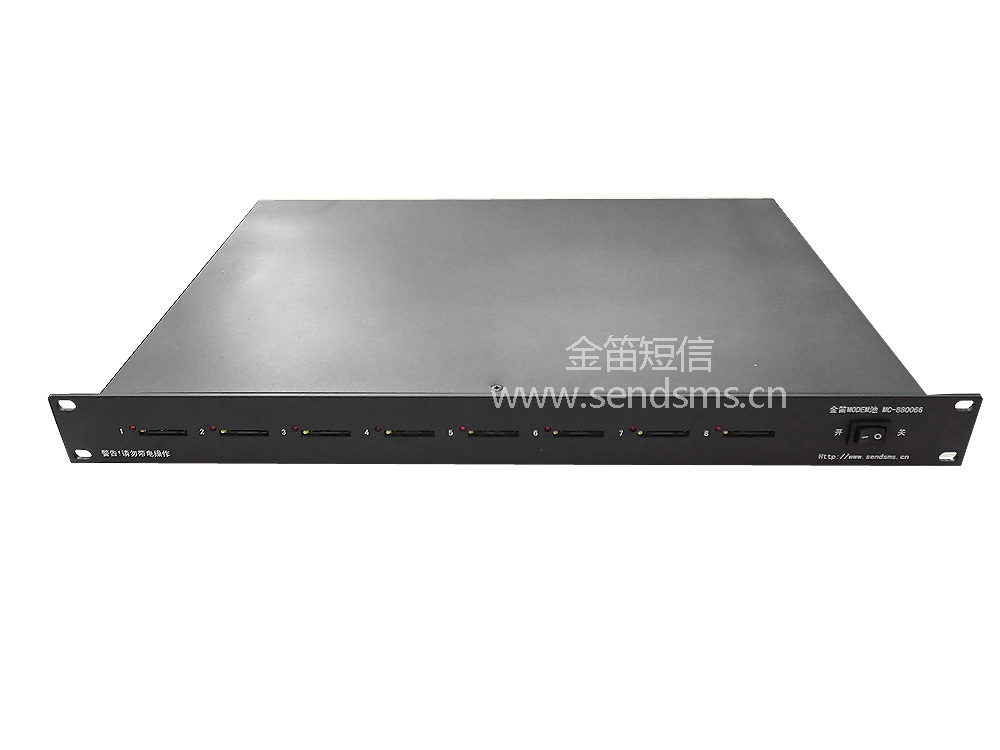

Jindi RJ45 MODEM POOL MC-880066

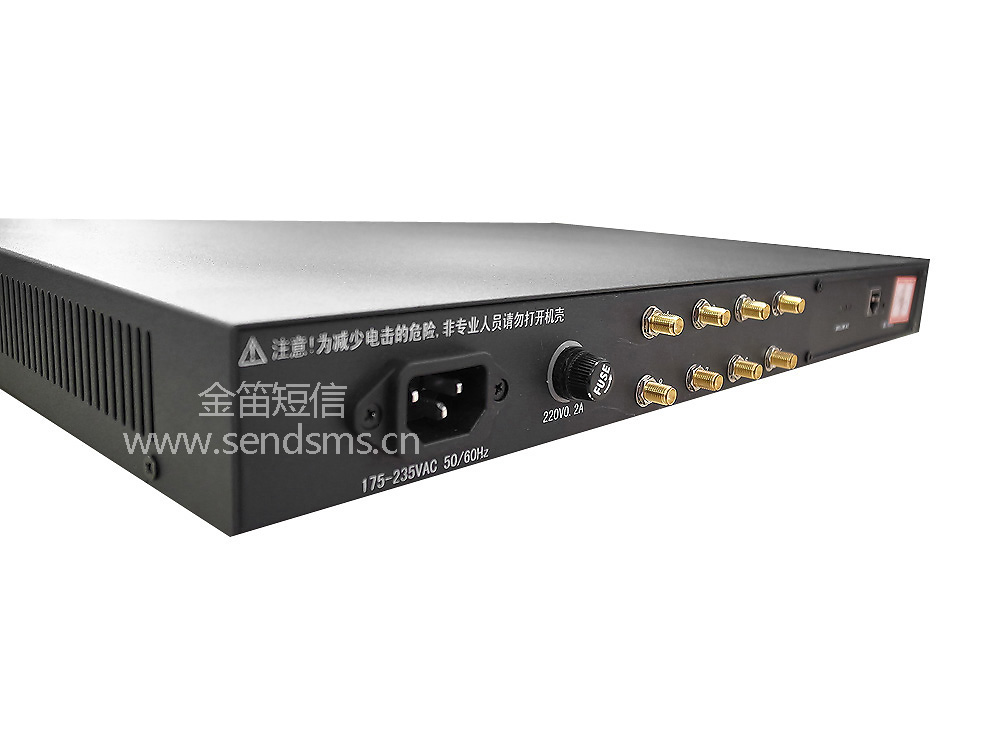

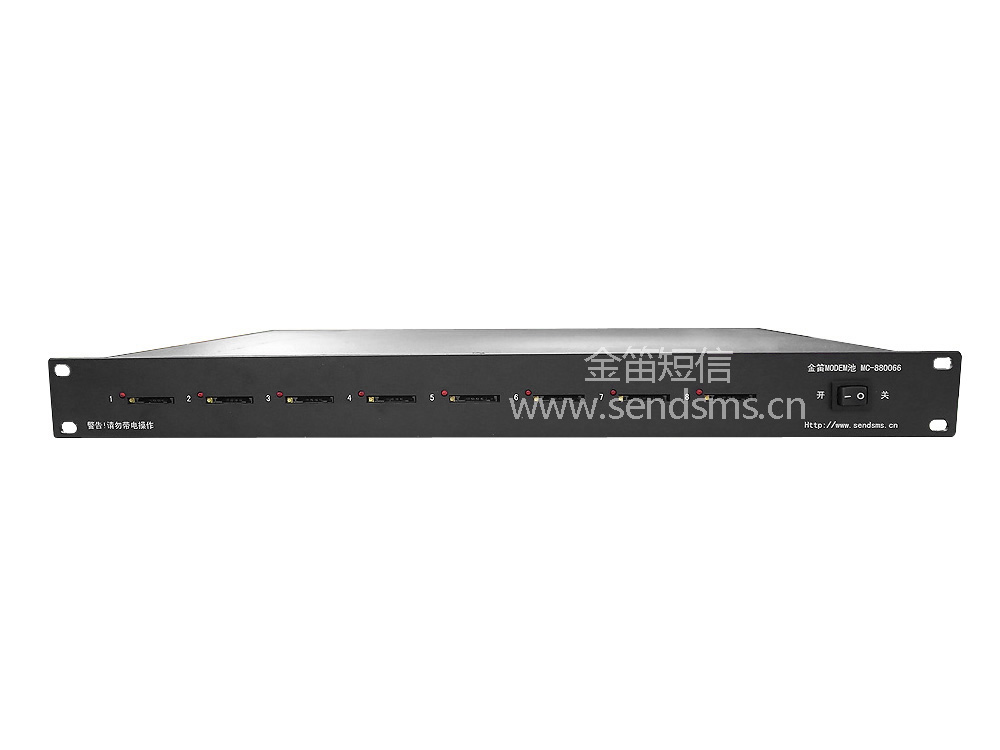

     The product model of this modem is MC-880066, which embeds at most eight wireless modules in. It can send messages by eight SIM cards inserted at the same time and the speed is eight times faster than a channel. The power supply is 220V, and it can stably work for a long time. Besides, the design of 1U rack-mounted almost occupies no space.
GSM：· Asynchronous, transparent or opaque, the highest standard 14400 bits/s
        · Baud rate: 300-115200 bits/s
        · Automatic baud rate: from 2,400 to 19,200 bits/s
        · Support the third type of automatic fax machine
        · Switch between voice and fax
        · V.42,V.42bis

CDMA：· Support TCP/IP UDP and PPP protocol
          · 2W RF power output
          · High sensitivity antenna
          · 153Kbps full duplex transmissibility
          · Power supply voltage 5V~16V
          · Enter power-save mode automatically
          · Automatic recovery- Time reset

Specifications And Parameters

Function Features


Interfaces And Accessories

产品性能

A、Advantages Of The System：
The wireless modem pool based on customer groups actual needs, can meet the following requirements of the enterprise：
· 1、Deliver the same or different information for customers;
· 2、Contact employees and issue meeting notifications in time；
· 3、Avoid spending a lot of manpower, material resources and time on the information transmission;
· 4、Avoid the high communication cost per month;
· 5、Provide more communications for enterprises to their customers(members), their partners and their employees.
B、Features Of The System：
· 1、Send SMS to the cluster: it can send the same message to lots of targets at the same time.
· 2、Wide distribution： it has widely distributed target groups, and support the scattered distribution too. Fast: messages can be received just in a very short time after sent out.
· 3、Convenient： receive messages by the phones carried with users.
· 4、Accurate: messages can be received accurately and timely.
· 5、Without omissions: messages are sent out by the computer, which greatly avoids omissions caused by the human factor.
· 6、Strong visibility: messages are sent and received by text.
· 7、Economical: it’s free to receive massages, and the charge of sending messages depends on the standards of different operators, without any other extra fees such as a long distance fee, a roaming fee and so on.
· 8、Time-saving and efficient: a same message can be sent to lots of targets at the same time; and it can be dealt with more than one modem to save lots of time.
· Per hour （with eight channels）：4800pcs of messages
· Per twenty-four hours（with eight channels）：115200pcs of messages

Technical Specification

· Eight channels embedded, and it can support eight SIM cards at the same time
· 1.8V/3V slide-on holder of SIM card
· Baud rate: 300-115200bits/s
· Support EGSM900/GSM1800（GSM domestic）
· Support EGSM900/GSM1800/GSM850/GSM1900（GSM international）
· Support CDMA2000 1X800MHZ（CDMA）
· Temperature Range: -20°C to +65°C

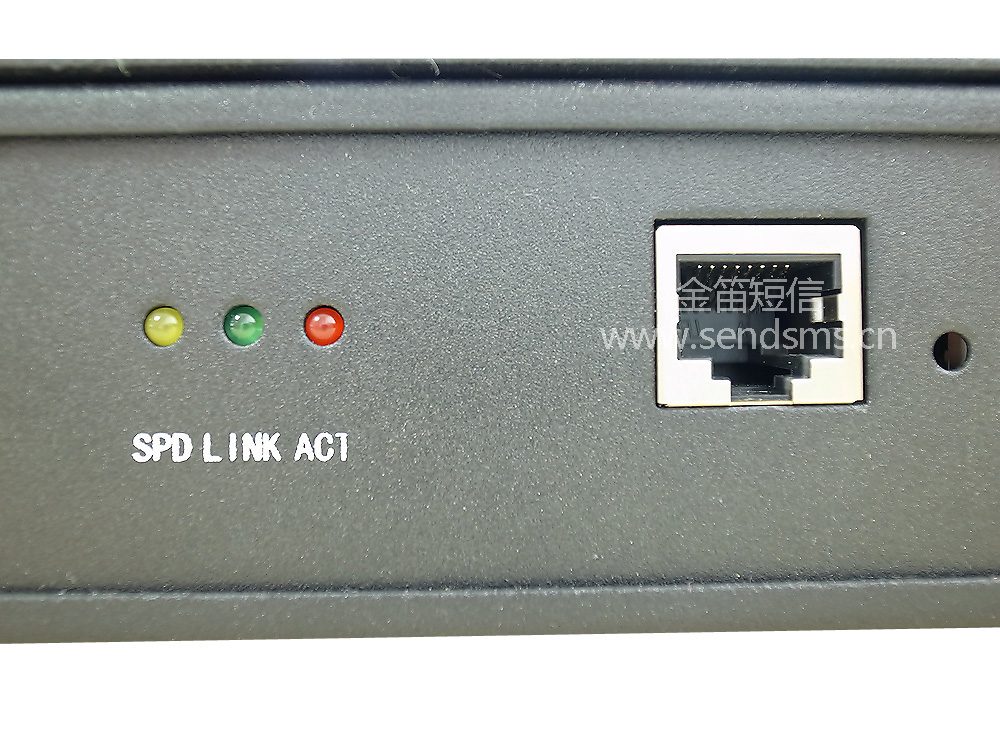

· RJ45 interface
· Support AT commands
· Transmission rate 19200-115200
· Input 220V 50HZ
· Average speed of each channel: six seconds per piece(right numbers and good signals), 4800pcs can be sent per hour with eight channels
· Size 485 x 295 x 45 (mm)

Application Scope

· Water conservancy hydro power
· Municipal engineering
· Intelligent transportation
· Disaster prevention and mitigation
· Financial and tax controlling
· Environment monitoring
· Petroleum and petrochemical
· Power industry
· Intelligent farming
· Industry and machine room monitoring
· Wireless city
· Wireless LED
· Environmental protection
· Financial POS
· Large shopping malls,large supermarkets
· Professional markets,Large-scale wholesalers
· Large hotels, large-scale places of entertainments
· Large travel agencies
· The transport industry, the logistics industry
· Large enterprises, institutions
· Large hospitals, large bookstores
· Newspaper, TV station, radio
· Oil company (other chain operation companies)
· Government offices or large rural areas

Look for the IP address of the modem pool
Connect the RJ45 modem pool to HUB or the Ethernet interface of switches by an internet cable. Install the antennas, SIM cards and finally connect the power supply. Here you can refer to the RS232 modem pool about detailed steps. http://www.sendsms.cn/yj7.html
Open the jindi upgrade.exe. As shown in the figure:

Click Server
Select Search all device
View IP Address It’s the default IP address below the option.
Modify IP address (Please note the IP address here should fill in the current internet IP address)
Click Temporary change IP address
Add IP and finish

Install the driver of RJ45 modem pool
Start installation under windows:
(1) Double click exe

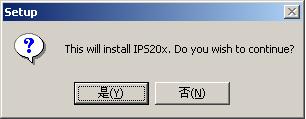

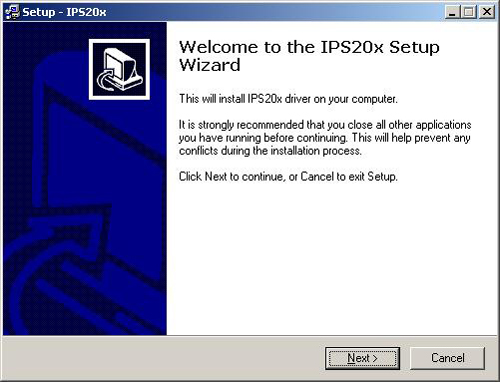

(2) Click <是（Y）>，start to install the driver

(3) Click

(4)Click

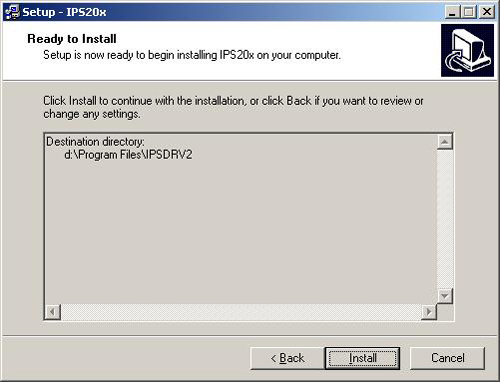

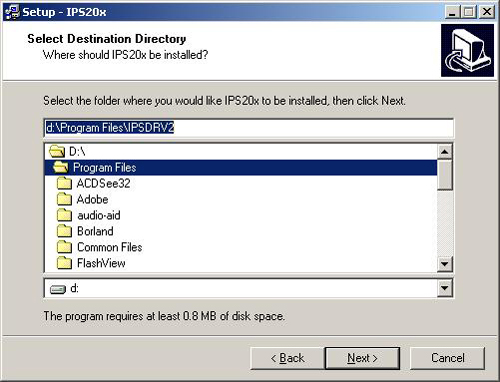

You can choose the target installation location according to your needs, or the default location of the procedure.

(5) Click

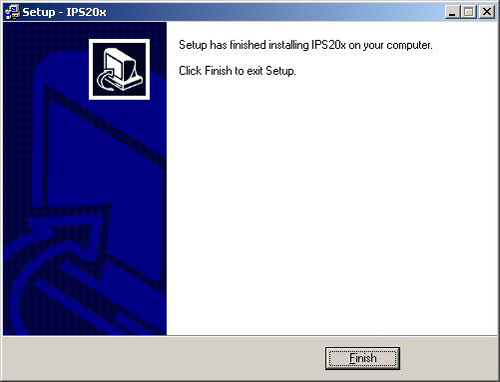

(6) Then click finish.

Configure COM ports
This step completes the mapping of the modem physical port to the computer COM port.

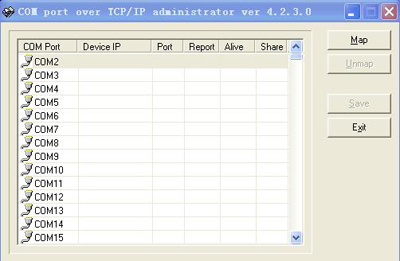

Click and double click COM port over TCP/IP in . Then the result is as shown:

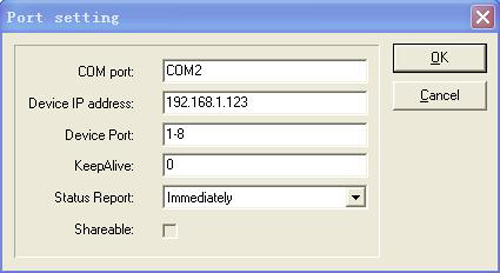

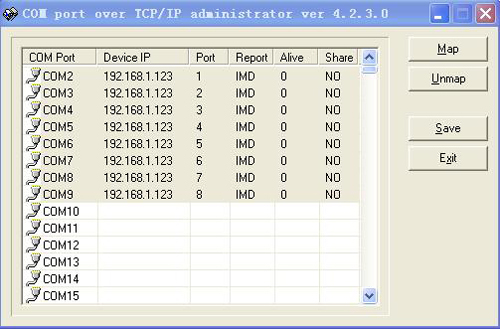

Double click the corresponding COM port, and configure a corresponding IP address. You can select once and configure all COM ports and IP addresses too. As shown in the figure:

DevicePort Input the mapping serial numbers of the physical modem pool: 1-8.
KeepAlive Select 0.

After finished settings, click OK.

Save the IP address of the modem pool
Run the command

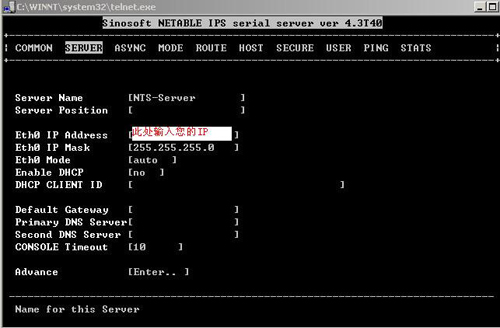

Enter the control menu, and change the Ethernet IP in the SERVER options to the IP you have set. Then save and exit.

Test
When finished the above operations, you can open Hypertrm and connect a COM port by the baud rate 9600 or 115200. Then input the command ati3 and confirm whether the returned modem information is right or not. Please refer to the instruction of the RS232 modem pool about the detailed operations of Hypetrm.
So far, the installation, configuration and testing of the modem pool have been finished.
You can use the SMS management software to send and receive messages by Jindi RJ45 modem pool, or do the further development based on SMS secondary development packages.
